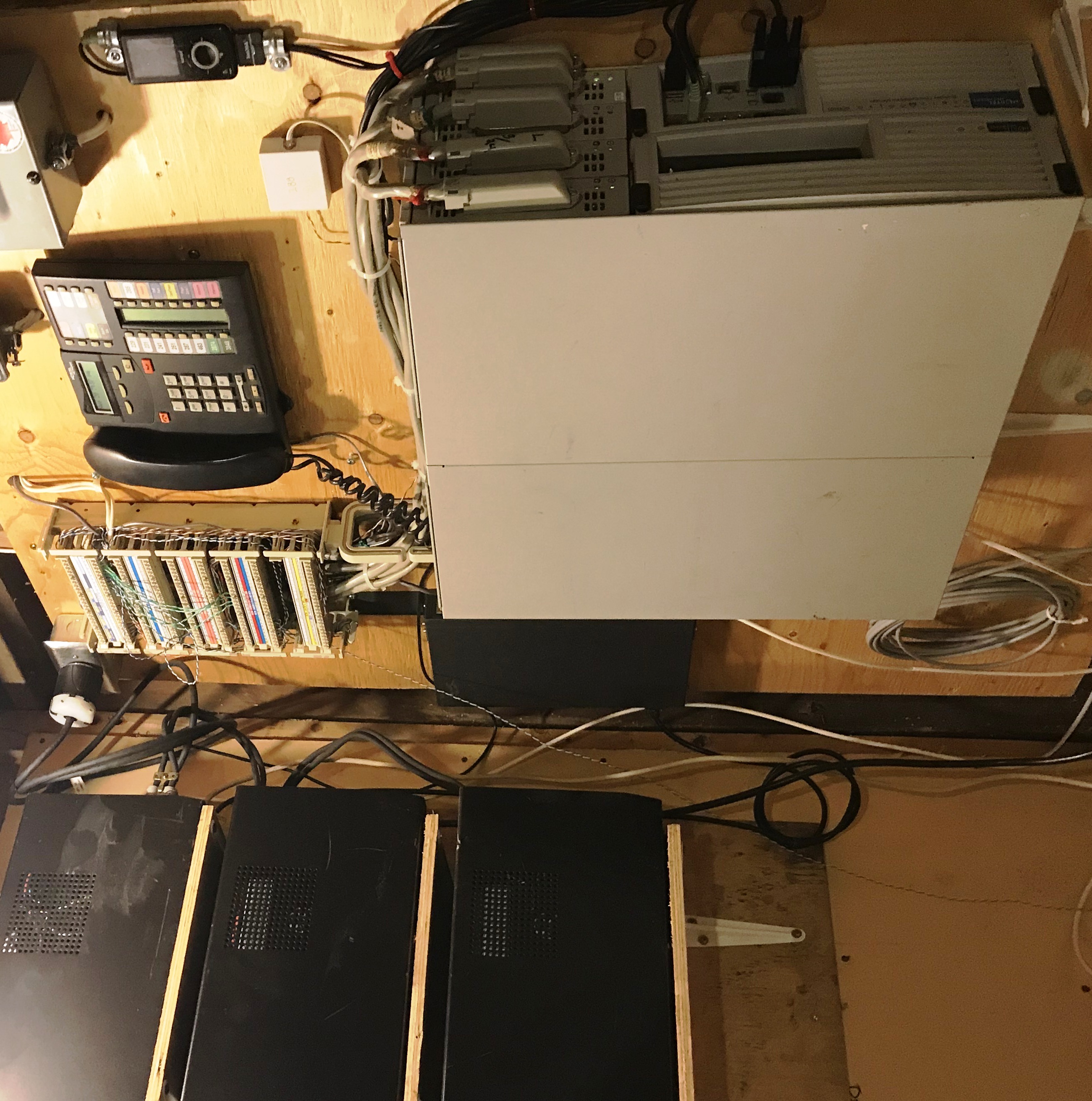

BUSINESS COMMUNICATIONS MANAGER (BCM)8X16 + 2X8GASM BCM400 Installation8X16 + 2X8GASM BCM400 Installation

Many Nortel Networks BCM50, BCM200, BCM400 and BCM450 systems, as well as Meridian and Norstar, remain in operation.
Despite EOS, EOL and End-of-Support from Avaya, there is still a network of technicians supporting this product globally.
Please contact us for options for keeping your venerable system in service!

Overview

BCM 3.5 HANDBOOK 2003















BCM 3.7 HANDBOOK 2005











TROUBLESHOOTING:

Alarms

Norstar/Companion Alarm Code Manual

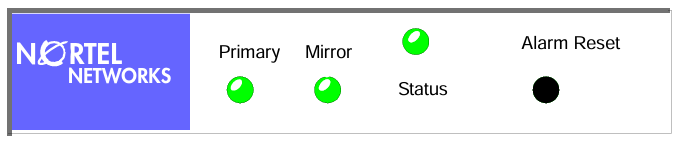

Flashing Lights













Steady Green = OK, services functioning
Disk Flashing Green = Drive Activity
Status Blinking Green = one or more telephony service failed, or not yet loaded
MSC, WAN, MODEM, LAN Flashing Green = driver failed or not yet loaded
POWER, TEMP, FAN Steady Red = power supply failure, over temperature, fan failed



Some great resources for the Nortel BCM400:

Mike's PBX Cookbook       Tek-Tips BCM FAQ       Voice Communications

please note: Verulam Telephone is not affiliated with, or responsible for any content in the above websites, they are just really cool!



Random thoughts:

-when reinstalling BCM 3.7 (Windows NT4.0 version,) or changing out the hard-drive: make sure that you plug the hard drive into the IDE 0 slot.  It will NOT boot from IDE 1.
-periodically power the system down, disconnect power cable, and pull the trays out one by one.  Blow out any fluff or dust bunny colonies and reseat all your connectors.



BCM400 3.7 Software

-Nortel IP Softphone 2050
    In my personal opinion, Version 2.00.0239 is far better than Version 1.40.0363 that was included with BCM3.7
    And, it works with 64-bit Windows 10...

BCM400 Hardware

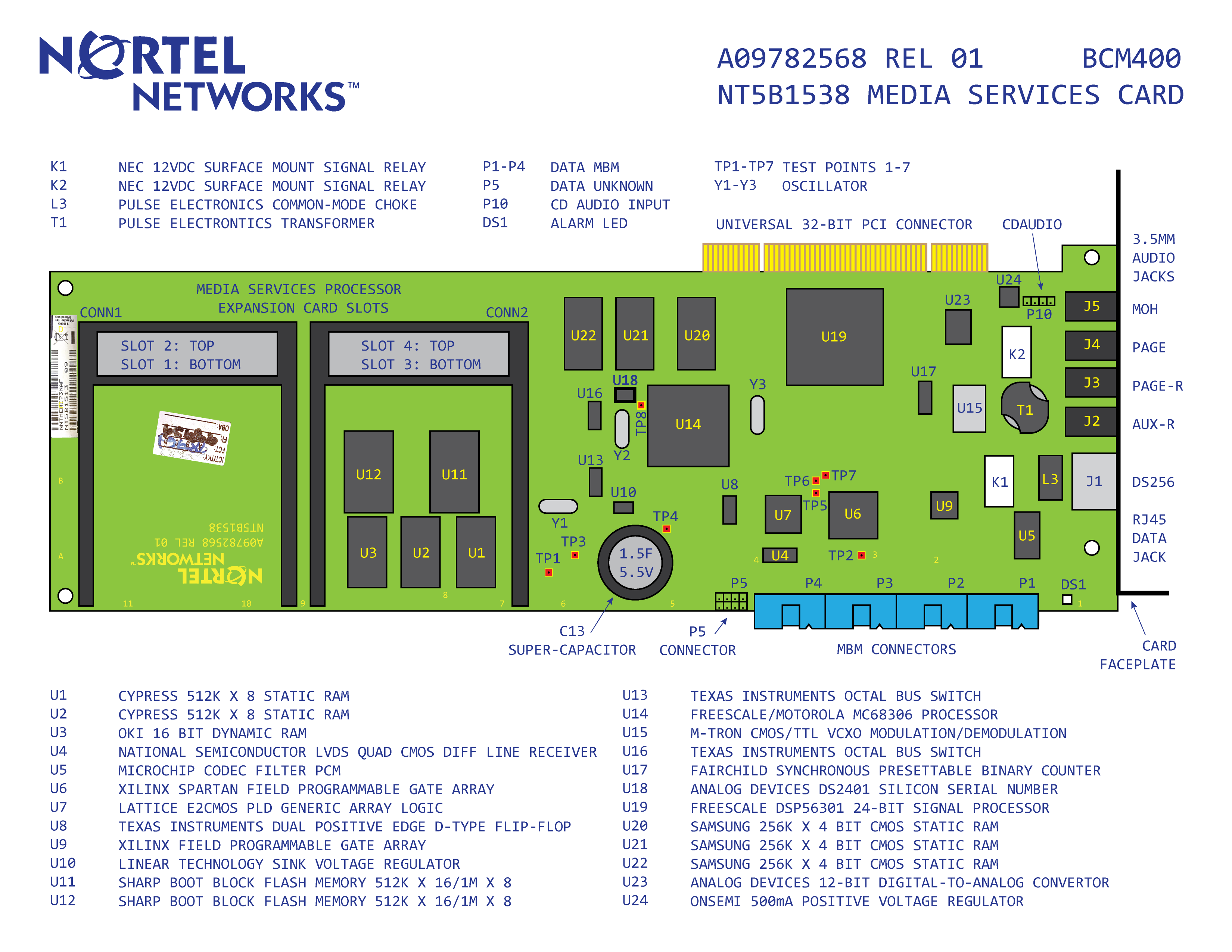

Media Services Card

NT5B1538

The Media Services Card (MSC) connects to the BCM400 Base Function Tray (BFT) through the PCI slot on the SH815 motherboard. It provides digital signal processing, buses for Media Bay Modules and contains system programming on multiple FLASH/RAM chips. System memory is maintained by a large supercapacitor. The MSC carries the DS2401 silicon serial number chip (U18) that provides the System ID. All feature licensing is driven by the System ID. In diagnosing hardware failures, be sure to try the MSC on a new BFT in order to preserve your licensed features.

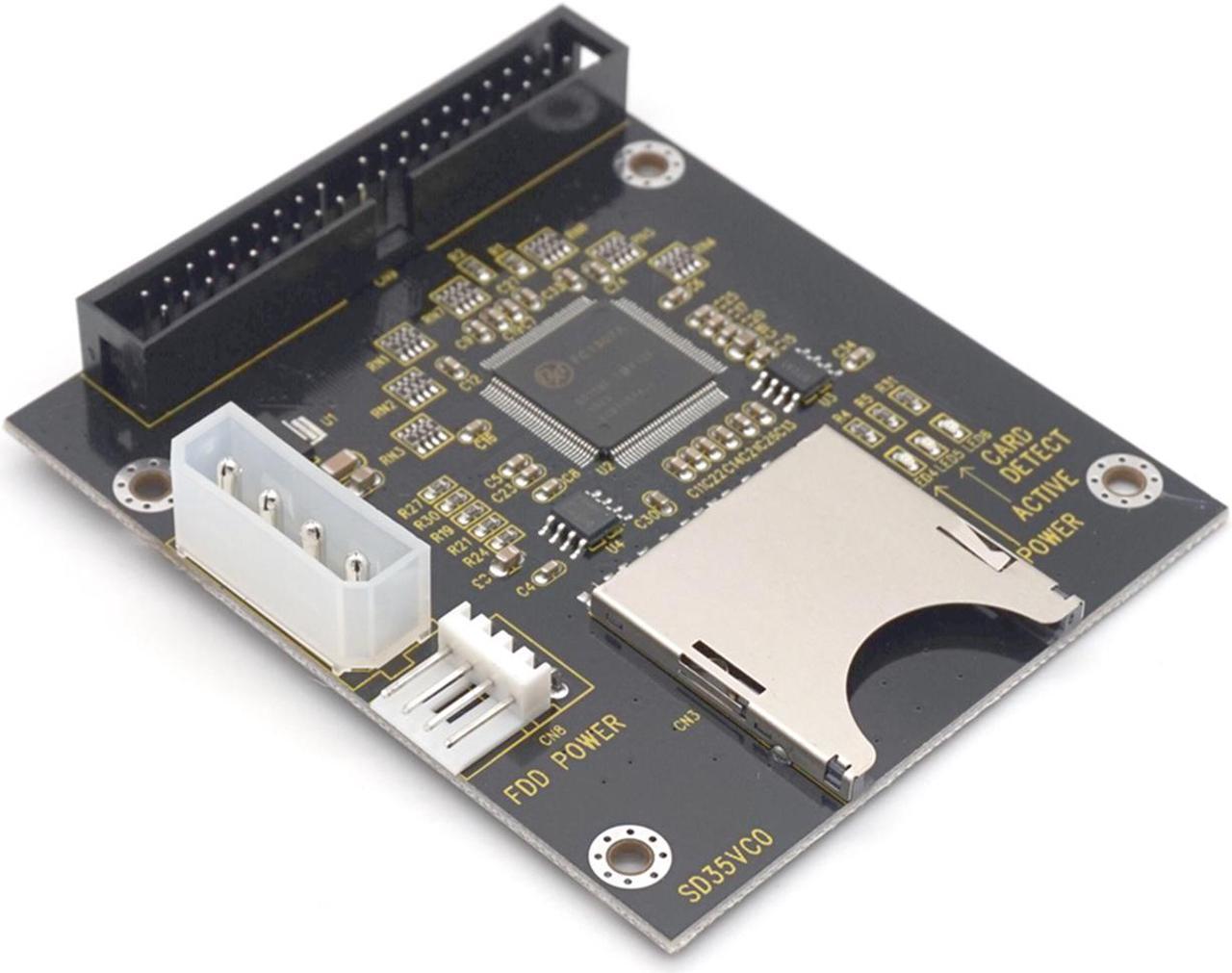

SD Card Adapter

-coming soon



SSD Drive Substitutes

- coming soon

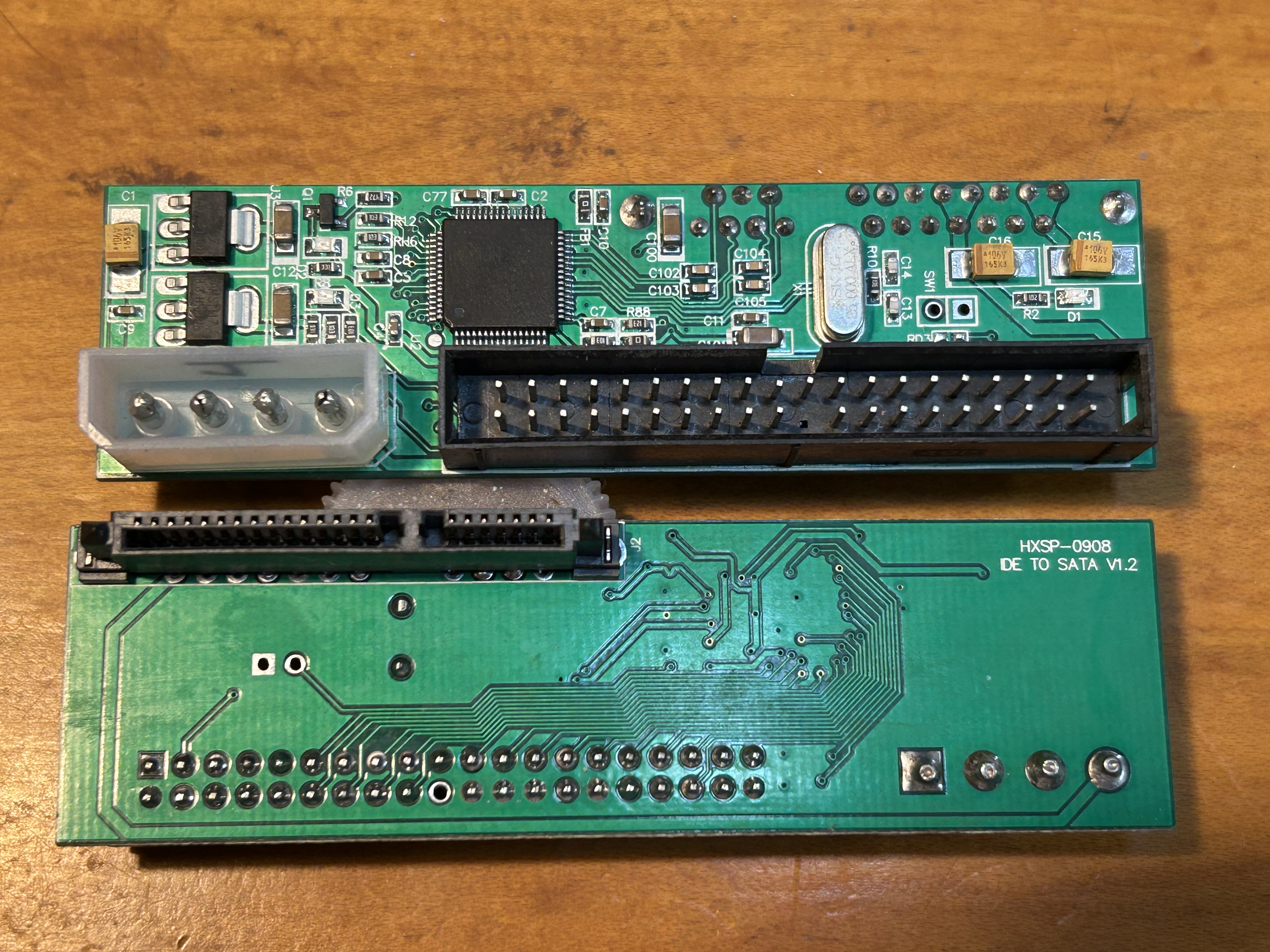

SATA Drive Adapters

- coming soon
